Neurodyn

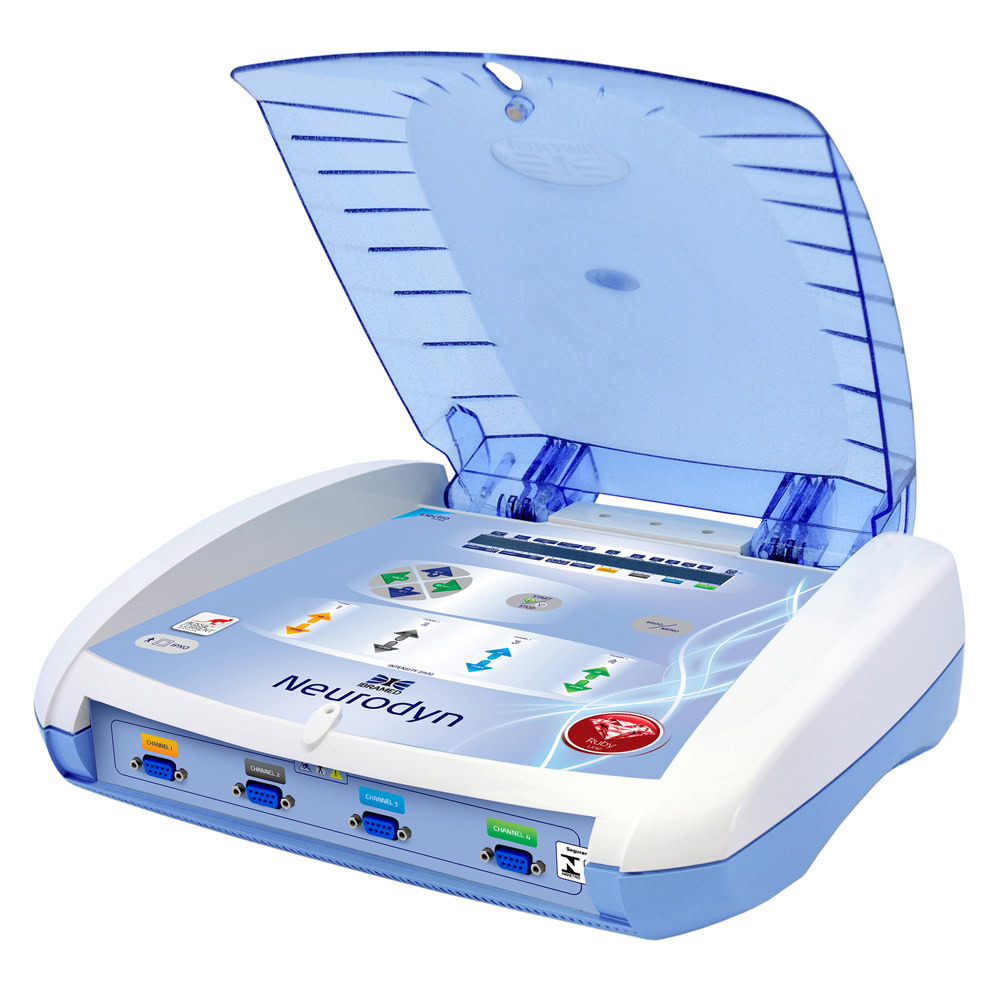

The New Neurodyn System is a modern transcutaneous neuromuscular stimulator with advanced technology, featuring five electrostimulation output channels with independent intensity controls, ensuring practicality and comprehensive therapeutic options. It is indicated for aesthetic and physiotherapy protocols as an aid in pain relief, muscle strengthening, motor re-education treatment, skin healing treatment, and assisting in increasing local blood circulation.

• The HV1/HV2 channel is exclusive to High Volt current, and its intensity increment will be controlled through channels 1 and 2 on the control panel;
• For Microcurrent (MENS) and Polarized Current, channels 1 and 2 should be used;
• Channels 1 to 4 are designated for Aussie, Russian, TENS, FES, ITP, and IBP Currents.

APPROXIMATE DIMENSIONS AND WEIGHT

• Dimensions (W x H x D): 27.0 cm x 29.4 cm x 11.4 cm
• Net Weight: 2 kg
• Gross Weight: 3.2 kg

INCLUDED ITEMS

• 1 IEC Female PP Cable – 2 x 0.75 x 1500 mm
• 1 White Dual Electrotherapy Cable (Red Pin & Black Pin)
• 1 Mini DIN – 6-Pin HV Connector Cable
• 8 Conductive Rubber Electrodes (5 cm x 5 cm)
• 2 Conductive Rubber Electrodes (12 cm x 8 cm)
• 4 Natural Sponges (7 cm x 7 cm)
• 4 Elastic Straps for Electrode Fixation
• 1 100g Gel Tube (ANVISA Registration: 80122200001)

SPECIAL PRECAUTIONS Using cables, electrodes, and other accessories different from those indicated as compatible with the device may result in increased emissions or decreased immunity of the equipment. Electrode hygiene should be performed with water and neutral soap.

Neurodyn

Conductive gel is required for applying the currents offered in this equipment and should always be neutral conductor gel, without air presence, for better current conduction. In cases of obesity, adipose tissue thickness may insulate the motor nerve, potentially altering current sensitivity.

• Presence of peripheral neuropathy: No response to short-duration electrical stimuli.
• Decreased sensory capacity: Skin irritation may occur.
• Current tolerance by the patient: The patient should gradually acclimate to the stimulation sensation.

CONSERVATION Avoid areas subject to vibrations and install the device on a firm, horizontal surface in a well-ventilated location.

Neurodyn

If using in an enclosed cabinet, ensure there is no obstruction to free air circulation in the rear and lower part of the device. Do not place it on carpets, cushions, or other soft surfaces that may obstruct ventilation. Avoid humid, hot, and dusty areas. Position the power cable so it remains free, away from areas where it may be stepped on, and do not place furniture over it.

Neurodyn

Do not insert objects into the device’s openings, and do not place liquid containers on it. This equipment is not protected against harmful water penetration. Do not use volatile substances (benzine, alcohol, thinner, or solvents in general) to clean the cabinet, as they may damage the finish. Use only a soft, dry, clean cloth.
