Sonopulse Compact 1 MHz Ibramed – Ultrasound Therapy for Rehabilitation Treatments
Sonopulse Compact 1 MHz Ibramed – Ultrasound Therapy for Rehabilitation Treatments
SKU: 1004019
Original price was: $997.78.$898.00Current price is: $898.00.
The New Sonopulse Compact 1 MHz from Ibramed is a microcontrolled therapeutic ultrasound equipment at a frequency of 1MHz with an ERA of 8 cm². Suitable for the areas of physiotherapy, aesthetics and aesthetic medicine. Enables Combined Therapy.
Information
Full Description

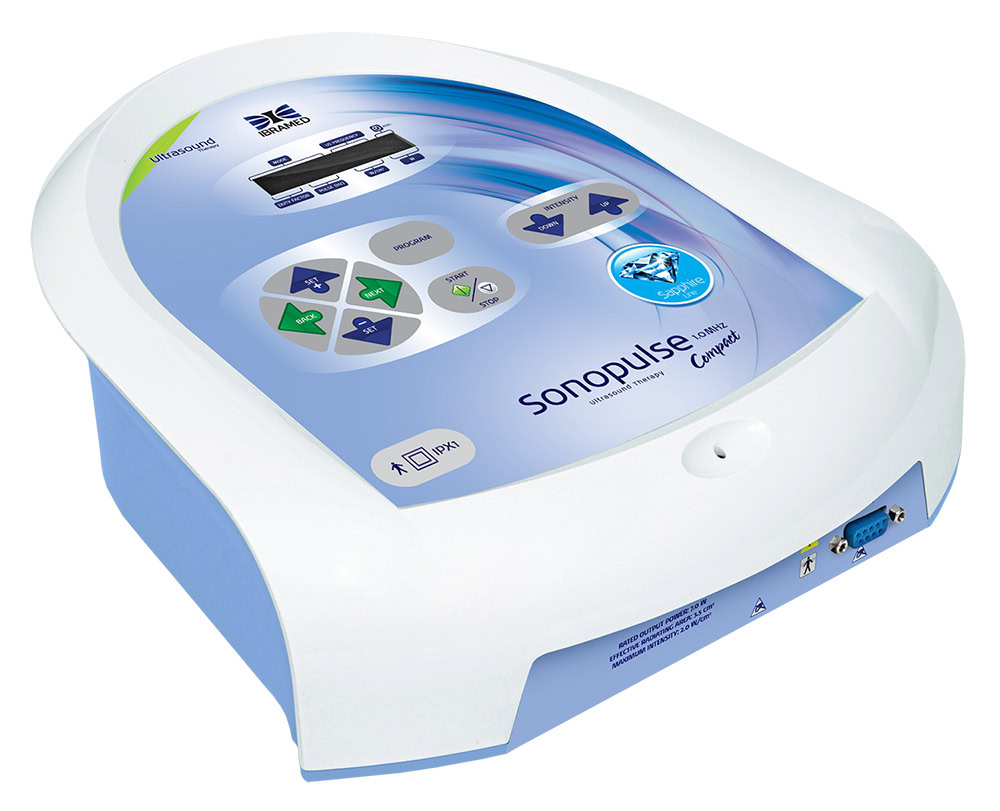

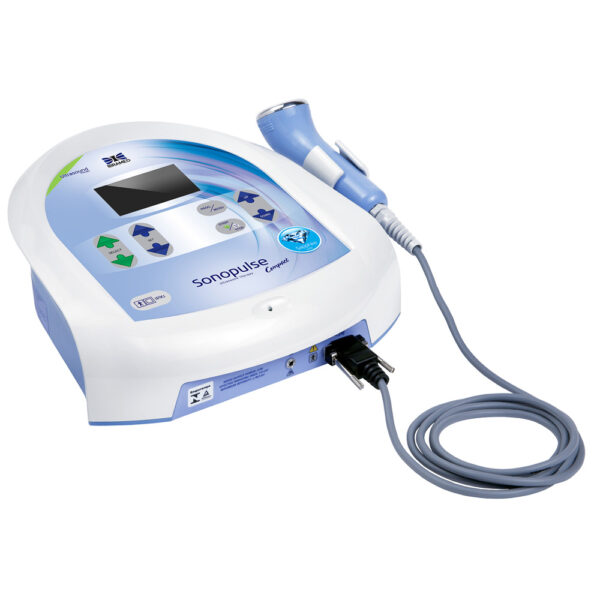

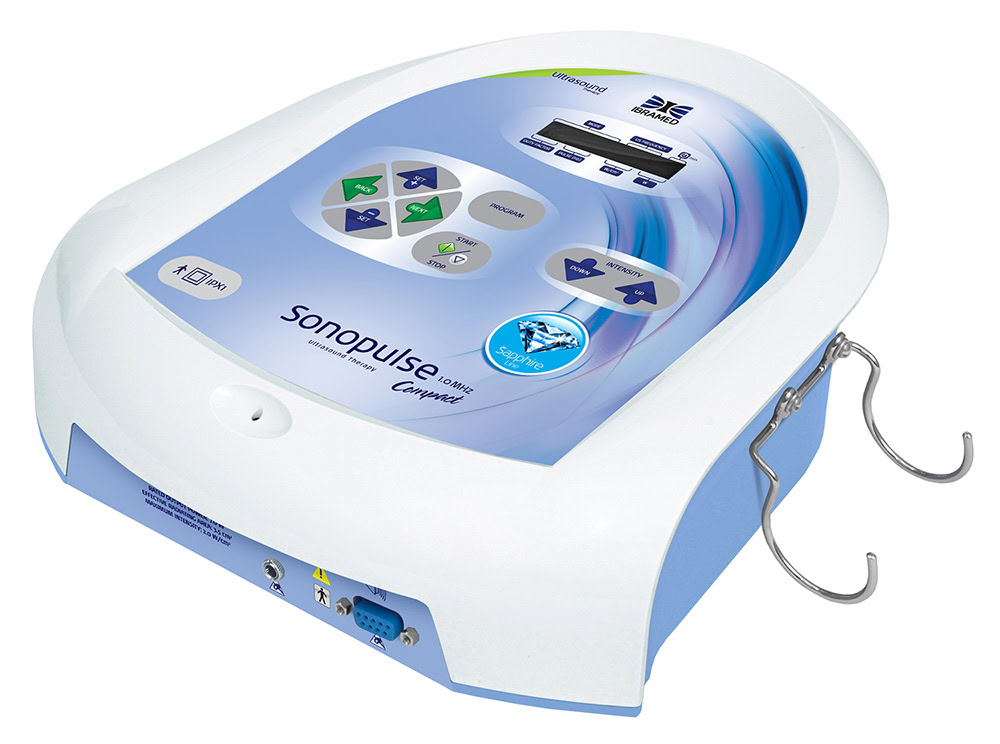

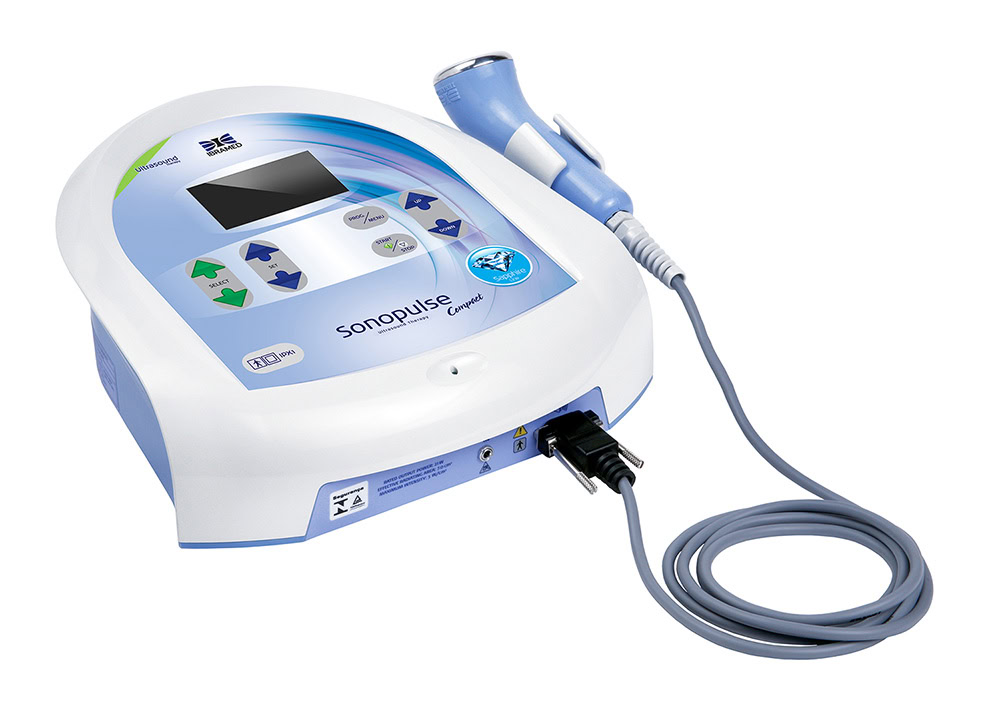

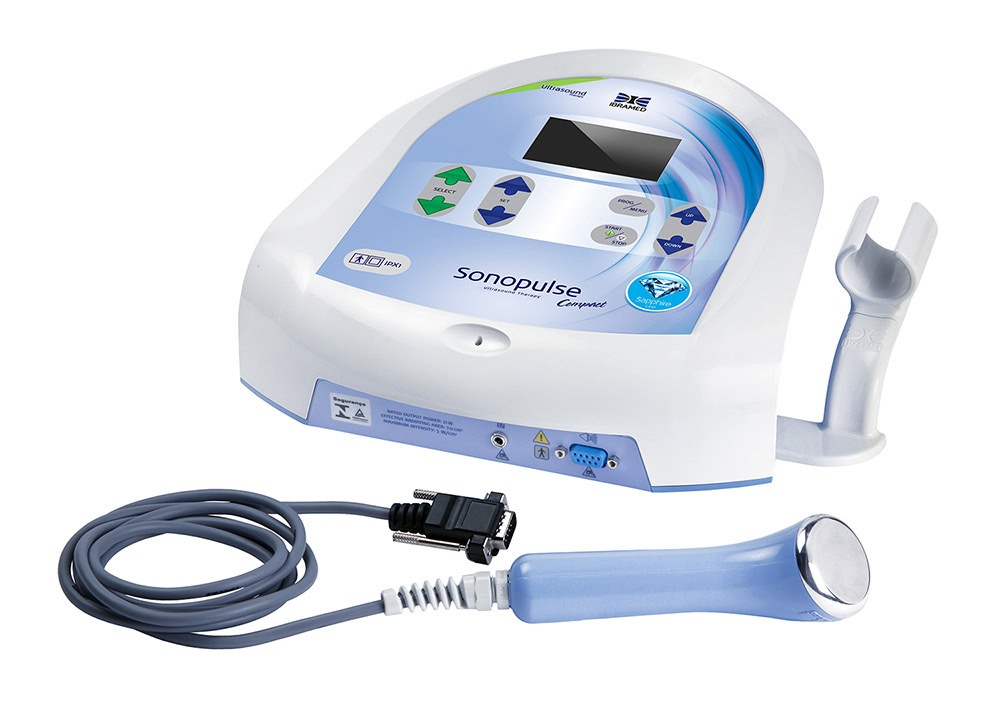

New Sonopulse Compact 1 MHz by Ibramed – Therapeutic Ultrasound Device
The New Sonopulse Compact 1 MHz by Ibramed is a microcontrolled therapeutic ultrasound device operating at a 1 MHz frequency with an Effective Radiating Area (ERA) of 8 cm². It is designed for rehabilitation, aesthetics, and aesthetic medicine.
INCLUDED ITEMS
- 1 Power Cable (PP Female IEC 3 x 0.75 x 1500 mm)
- 1 Gel Tube (100g capacity)
- 1 Adapter Cable for Combined Therapy

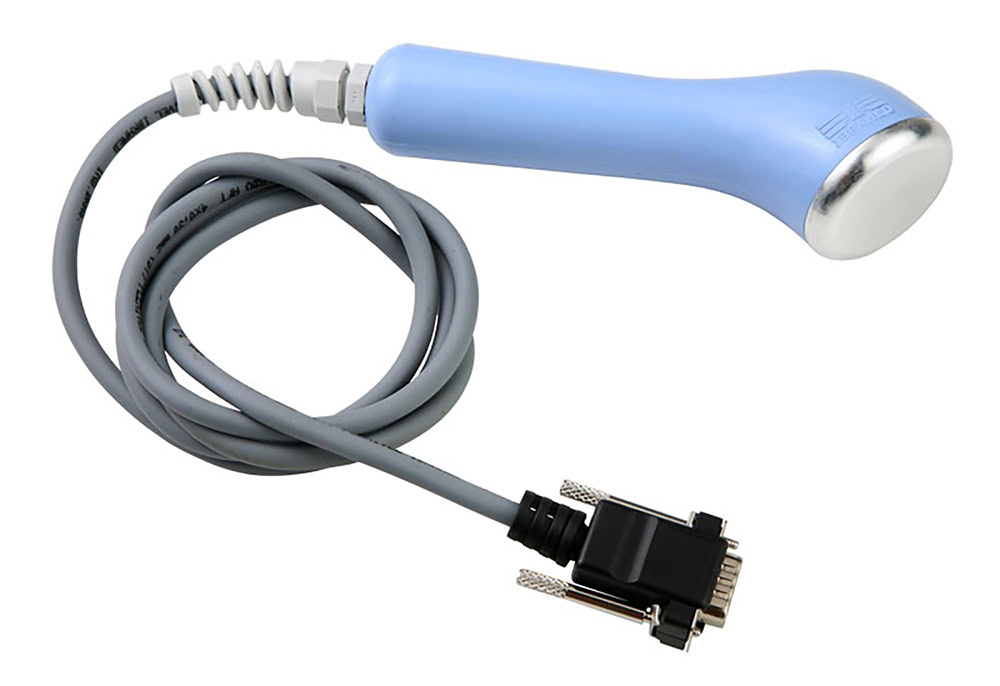

- 1 Ultrasound Applicator (Sonopulse Family)
- 2 Fuses (20 AG 5A)
CONTRAINDICATIONS
Do not use in the following situations:
- Pregnancy or over a potentially pregnant uterus
- Treatment of undiagnosed pain
- Over neoplastic areas or areas where a tumor has been removed
- Application over the eyes
- Open wounds at the treatment site
- Over ischemic areas, where blood supply may be insufficient, leading to necrosis
- Application over growing bone epiphyses
- Patients with implanted electronic devices (e.g., pacemakers, deep brain stimulators)
- Previously irradiated areas (radiotherapy-treated regions)
- Over gonads to prevent overheating
- Application over the cardiac area
- Over areas affected by thrombophlebitis, deep vein thrombosis, embolism, or severe atherosclerosis
- Suspected serious infectious diseases or medical conditions requiring suppression of heat or fever
- Over the stellate ganglion, spinal cord, or skull
- Areas with reduced sensation, impaired circulation, or anesthetized regions
sonopulse compact 1 mhz
MAINTENANCE & STORAGE
- Avoid placing the device in vibration-prone locations; always install it on a stable, level surface with adequate ventilation.
- If stored in a built-in cabinet, ensure that airflow is not obstructed at the back or bottom.
- Do not place the device on carpets, cushions, or soft surfaces that may block ventilation.
- Keep the power cord free from foot traffic, and do not place furniture on top of it.
- Do not insert objects into the device’s openings.
- Do not place liquid containers on the device, as it is not water-resistant.
- For cleaning, avoid volatile substances such as benzene, alcohol, thinner, or general solvents, as they can damage the finish. Use only a soft, dry, and clean cloth.
DIMENSIONS & WEIGHT
- Dimensions: 27 cm x 29.5 cm x 11.5 cm (W x H x D) ±5%
- Net Weight: 1.815 kg ±5%
- Gross Weight: 2.840 kg ±5%
More Info
Applications
Rehabilitation
The device is recommended for:
- Active ingredient penetration (sonophoresis)
- Pain relief
- Reduction of muscle spasms
- Edema drainage
- Increased local blood circulation
- Treatment of tendinopathies and bursitis
- Bruising (ecchymosis)
- Acute and chronic inflammatory processes
- Increased joint range of motion
- Tissue regeneration
Aesthetics and Aesthetic Medicine
It is commonly used for:
- Reduction of localized fat
- Reduction of gynoid lipodystrophy (cellulite)
- Postoperative care for plastic and reconstructive surgeries
- Improvement of skin quality and firmness
- Active ingredient penetration (sonophoresis)
- Ultrasonic hydrolipoclasia
Key Features
- 20 custom protocols and pre-programmed protocols for rehabilitation and aesthetics
- Compact and lightweight design with a 128 x 64 cm display, ensuring easy handling and simple programming
- 8 cm² ERA, reducing treatment time
- High power output: 24 W
- Compatible with combined therapy, working with any device from the Neurodyn Line
Specifications
TECHNICAL SPECIFICATIONS
- Brand: Ibramed
- Model: New Sonopulse Compact 1 MHz
- Frequency: 1.1 MHz (Sonopulse Compact 1 MHz)
- Effective Radiating Area (ERA): 8 cm²
- Input Power: 150 VA
- Modes: Continuous and Pulsed
- Pulse Repetition Frequency: 16 Hz, 48 Hz, or 100 Hz
- Duty Cycle: 5%, 10%, 20%, 50%, or 75%
- Treatment Time: 0 – 30 minutes
- BNR (Beam Nonuniformity Ratio): 2.4035 (1 MHz) and 3.3350 (3 MHz)
- Maximum Power: 24 Watts
- Intensity: 0.1 to 3.0 W/cm²
- ANVISA Registration: 10360310039
- Warranty & Validity: 18 months
